Building a Secure Email Server: Part 2 – Deployment

Time to complete: 2-3 hours
Monthly cost: ~$12.50 ($12 DigitalOcean + $0.50 AWS S3)
Prerequisites: Part 1 (component selection), domain registered with Cloudflare DNS, basic Linux familiarity

Introduction

In Part 1, we selected components and justified the hybrid architecture: self-hosted mail server for receiving with commercial relay for sending. This article walks through the actual deployment, ending with a fully functional mail server that can receive email and provide IMAP access.

We’ll also confront the reality of outbound email delivery for small self-hosted servers—specifically why AWS SES denied our production access request and what we’re doing about it.

What you’ll have by the end:

Mail server receiving email on your domain
IMAP access from any email client
TLS encryption throughout
Automated backups to AWS S3
Foundation for reliable outbound delivery (covered in Part 3)

Preparation

Server Provisioning

Create a $6/month DigitalOcean droplet with these specifications:

Image: Ubuntu 24.04 LTS x64
Plan: Basic Shared CPU, $6/month (1GB RAM, 25GB SSD, 1000GB transfer)
Region: Choose geographically closest to you for lower latency
Authentication: SSH keys (if you don’t have keys, generate them on your local machine first)
Hostname: mail-[your-domain]
Tags: mail, production (optional, for organization)

After the droplet is created, note the IP address and log in:

# Connect to your server
ssh root@[your-droplet-ip]

# You should see the Ubuntu welcome message

Update the system immediately:

# Update package lists
sudo apt update

# Upgrade all packages
sudo apt upgrade -y

# This may take 2-5 minutes

Set the hostname properly:

# Set the fully qualified domain name
sudo hostnamectl set-hostname mail.[your-domain].com

# Verify it was set
hostname -f
# Should output: mail.[your-domain].com

Configure the firewall (UFW) before anything else:

This is critical—configure all ports before enabling the firewall to avoid locking yourself out.

# Check current status (should be inactive)
sudo ufw status

# Set default policies
sudo ufw default deny incoming
sudo ufw default allow outgoing

# Allow SSH FIRST (critical - don't skip this!)
sudo ufw allow 22/tcp
# Output: Rules updated

# Allow mail server ports
sudo ufw allow 25/tcp    # SMTP (receiving mail from other servers)
sudo ufw allow 587/tcp   # SMTP submission (authenticated sending)
sudo ufw allow 993/tcp   # IMAPS (encrypted IMAP)

# Allow web ports for Let's Encrypt and future webmail
sudo ufw allow 80/tcp    # HTTP (Let's Encrypt challenge)
sudo ufw allow 443/tcp   # HTTPS (webmail)

# Enable the firewall
sudo ufw enable
# Press 'y' when prompted

# Verify all rules are in place
sudo ufw status verbose

Expected output:

To                         Action      From
--                         ------      ----
22/tcp                     ALLOW       Anywhere
25/tcp                     ALLOW       Anywhere
587/tcp                    ALLOW       Anywhere
993/tcp                    ALLOW       Anywhere
80/tcp                     ALLOW       Anywhere
443/tcp                    ALLOW       Anywhere

Create a non-root administrative user:

Running everything as root is a security risk. Create a dedicated user:

# Create user (you'll be prompted for password and info)
adduser [username]

# Add to sudo group for administrative privileges
usermod -aG sudo [username]

# Verify user was created
id [username]
# Should show uid, gid, and groups including sudo

For the rest of this guide, you can continue as root for service configuration, or switch to your new user with su - [username]. Service installation and configuration typically require sudo/root access.

Common issue: If you enable UFW before allowing port 22, you’ll be locked out immediately. Use DigitalOcean’s web console (droplet → Access → Launch Droplet Console) to regain access and run ufw allow 22/tcp && ufw reload.

DNS Configuration

Configure these records in Cloudflare before installing mail software. DNS propagation takes 2-10 minutes, so we set this up first.

Log into Cloudflare and select your domain.

Navigate to DNS → Records, then add each of these:

1. A Record (Mail Server IP):

Type: A
Name: mail
Content: [your-droplet-ip]
Proxy status: DNS only (gray cloud - CRITICAL)
TTL: Auto

Click “Save”. The proxy status must be DNS only (gray cloud icon, not orange). SMTP and IMAP protocols don’t work through Cloudflare’s HTTP proxy.

2. MX Record (Mail Destination):

Type: MX
Name: @ (or leave blank for root domain)
Mail server: mail.[your-domain].com
Priority: 10
Proxy status: DNS only
TTL: Auto

The priority value (10) determines which server receives mail if you have multiple MX records. Lower numbers have higher priority.

3. SPF Record (Sender Policy Framework):

Type: TXT
Name: @ (root domain)
Content: v=spf1 ip4:[your-droplet-ip] include:amazonses.com -all
TTL: Auto

This tells receiving servers which IPs are authorized to send mail from your domain. The -all means “reject all other senders.”

4. DMARC Record (Domain-based Message Authentication):

Type: TXT
Name: _dmarc
Content: v=DMARC1; p=none; rua=mailto:dmarc@[your-domain].com
TTL: Auto

DMARC tells receiving servers what to do with mail that fails SPF/DKIM checks. p=none is monitoring mode—good for initial setup. The rua address receives aggregate reports.

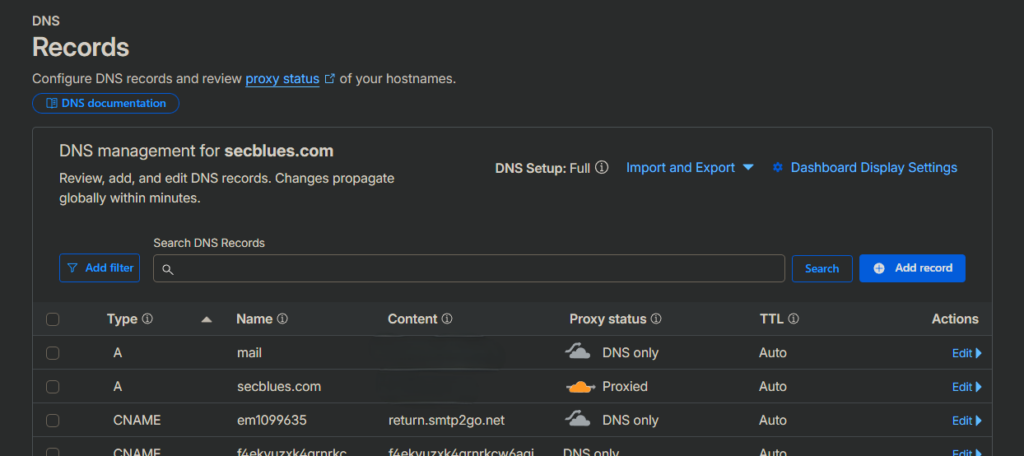

Your DNS records should now look like this:

Type	Name	Content	Proxy
A	mail	[your-ip]	DNS only
A	@	[wordpress-ip]	Proxied
MX	@	mail.[your-domain].com (priority 10)	–
TXT	@	v=spf1 ip4:[your-ip] include:amazonses.com -all	–
TXT	_dmarc	v=DMARC1; p=none; rua=mailto:dmarc@…	–
CNAME	www	[your-domain].com	Proxied

Configure PTR Record (Reverse DNS):

PTR records map IP addresses back to hostnames. Many mail servers reject email if the sending IP doesn’t have a proper PTR record.

In DigitalOcean:

Go to your droplet page
Click the Networking tab
Scroll to “PTR Record” or “Reverse DNS”
Enter: mail.[your-domain].com
Click “Update” or “Save”

Some DigitalOcean regions show this differently—if you don’t see it, check Networking → Domains or submit a support ticket.

Wait 2-5 minutes for DNS propagation, then verify from your mail server:

# Test A record (should return your droplet IP)
dig mail.[your-domain].com +short

# Expected output:
# [your-droplet-ip]

# Test MX record
dig MX [your-domain].com +short

# Expected output:
# 10 mail.[your-domain].com.

# Test SPF record
dig TXT [your-domain].com +short

# Expected output (among other TXT records):
# "v=spf1 ip4:[your-droplet-ip] include:amazonses.com -all"

# Test PTR record (reverse lookup)
dig -x [your-droplet-ip] +short

# Expected output:
# mail.[your-domain].com.

If any of these fail, wait a few more minutes and try again. DNS propagation can take up to 10 minutes, occasionally longer.

Common issues:

dig mail.[your-domain].com returns 127.0.0.1: The server is resolving via /etc/hosts. Check and remove any lines containing your mail hostname:

# Check hosts file
cat /etc/hosts

# If you see mail.[your-domain].com mapped to 127.0.0.1, edit and remove it
sudo nano /etc/hosts
# Delete the offending line, save and exit

# Flush DNS cache
sudo systemd-resolve --flush-caches
sudo systemctl restart systemd-resolved

# Test again
dig mail.[your-domain].com +short

MX record shows Cloudflare IPs: You accidentally left proxy mode on. Go back to Cloudflare DNS, click the orange cloud next to the mail A record to turn it gray (DNS only).
PTR record not working: Some regions require 24 hours or a support ticket. You can proceed with setup, but deliverability will be limited until PTR is configured.

TLS Certificates

Modern email requires TLS encryption. We’ll use Let’s Encrypt to get free, trusted certificates that auto-renew.

Install Certbot:

# Install certbot and dependencies
sudo apt install certbot -y

# Verify installation
certbot --version
# Should show: certbot 2.x.x

Obtain certificates using standalone mode:

Standalone mode temporarily runs a web server on port 80 for the Let’s Encrypt ACME challenge. This is why we opened port 80 in the firewall earlier.

# Request certificates
sudo certbot certonly --standalone -d mail.[your-domain].com

You’ll be prompted for:

Email address: Enter your email (used for renewal notices) Enter email address (used for urgent renewal and security notices): [email protected]
Terms of Service: Type A and press Enter to agree Please read the Terms of Service at https://letsencrypt.org/documents/LE-SA-v1.3... (A)gree/(C)ancel: A
Share email with EFF: Type Y or N (your choice) Would you be willing to share your email with the Electronic Frontier Foundation? (Y)es/(N)o: N

Expected output on success:

Successfully received certificate.
Certificate is saved at: /etc/letsencrypt/live/mail.[your-domain].com/fullchain.pem
Key is saved at:         /etc/letsencrypt/live/mail.[your-domain].com/privkey.pem
This certificate expires on 2026-05-13.
These files will be updated when the certificate renews.
Certbot has set up a scheduled task to automatically renew this certificate in the background.

Verify certificate files exist:

# List certificate directory
sudo ls -la /etc/letsencrypt/live/mail.[your-domain].com/

# You should see:
# cert.pem -> ../../archive/mail.[your-domain].com/cert1.pem
# chain.pem -> ../../archive/mail.[your-domain].com/chain1.pem
# fullchain.pem -> ../../archive/mail.[your-domain].com/fullchain1.pem
# privkey.pem -> ../../archive/mail.[your-domain].com/privkey1.pem

The files you’ll use in configuration:

fullchain.pem: Certificate + intermediate certificates (for public presentation)
privkey.pem: Private key (keep this secure, never share)

Verify auto-renewal is configured:

Let’s Encrypt certificates expire after 90 days. Certbot automatically sets up a systemd timer to renew them.

# Check renewal timer status
sudo systemctl status certbot.timer

# Should show: active (waiting)

Test the renewal process (dry-run):

# Simulate renewal without actually renewing
sudo certbot renew --dry-run

# Should end with: Congratulations, all simulated renewals succeeded

This confirms that renewal will work when needed.

Common issues:

Connection timeout during challenge: Ensure port 80 is open in UFW (sudo ufw status | grep 80). Some hosting providers also have network-level firewalls—check DigitalOcean’s Cloud Firewall settings if enabled.
DNS validation failed: Certbot can’t resolve mail.[your-domain].com. Check that your A record exists and propagated with dig mail.[your-domain].com +short.
Certificate already exists: If you’re re-running certbot, you’ll see “Certificate not yet due for renewal”. This is fine—use the existing certificates.

Mailbox Essentials

Postfix: Receiving Mail

Postfix is the MTA (Mail Transfer Agent) that handles receiving mail from other servers and routing it to user mailboxes.

Install Postfix:

sudo apt install postfix -y

During installation, a configuration screen will appear:

General type of mail configuration:
- Use arrow keys to select: Internet Site
- Press Enter
System mail name:
- Enter: [your-domain].com (without the mail. prefix)
- This is your email domain, not the server hostname
- Press Enter

The installation configures Postfix with basic settings. We’ll customize it next.

Backup the original configuration:

# Always backup before editing
sudo cp /etc/postfix/main.cf /etc/postfix/main.cf.backup

# Verify backup exists
ls -la /etc/postfix/*.backup

Edit the main configuration file:

sudo nano /etc/postfix/main.cf

Verify these basic settings (they should already be set from installation, around lines 30-50):

myhostname = mail.[your-domain].com
mydomain = [your-domain].com
myorigin = $mydomain
mydestination = $myhostname, localhost.$mydomain, localhost, $mydomain
inet_interfaces = all
inet_protocols = ipv4

What these mean:

myhostname: The server’s fully qualified domain name
mydomain: Your email domain
myorigin: What domain appears in mail sent from this server
mydestination: Domains this server accepts mail for (local delivery)
inet_interfaces: Listen on all network interfaces (not just localhost)
inet_protocols: Use IPv4 only (simplifies configuration)

Scroll to the end of the file and add these sections:

# ====== Maildir Configuration ======
home_mailbox = Maildir/
mailbox_command =

# ====== TLS Configuration ======
smtpd_tls_cert_file=/etc/letsencrypt/live/mail.[your-domain].com/fullchain.pem
smtpd_tls_key_file=/etc/letsencrypt/live/mail.[your-domain].com/privkey.pem
smtpd_tls_security_level=may
smtpd_tls_loglevel = 1
smtpd_tls_session_cache_database = btree:${data_directory}/smtpd_scache

smtp_tls_CApath=/etc/ssl/certs
smtp_tls_security_level=may
smtp_tls_session_cache_database = btree:${data_directory}/smtp_scache

# ====== SASL Authentication ======
smtpd_sasl_type = dovecot
smtpd_sasl_path = private/auth
smtpd_sasl_auth_enable = yes
smtpd_sasl_security_options = noanonymous
smtpd_sasl_local_domain = $myhostname

# ====== Recipient Restrictions ======
smtpd_recipient_restrictions =
    permit_mynetworks,
    permit_sasl_authenticated,
    reject_unauth_destination

Configuration explanations:

Maildir:

home_mailbox = Maildir/: Store mail in ~/Maildir/ instead of /var/mail/username
mailbox_command =: Empty value disables any custom delivery agent

Why Maildir over mbox:

Each email is a separate file (safer, less corruption)
Better IMAP performance (no file locking issues)
Can handle concurrent access properly
Standard for modern mail servers

TLS Settings:

smtpd_tls_cert_file/key_file: Point to Let’s Encrypt certificates
smtpd_tls_security_level=may: Offer TLS but don’t require it (some servers don’t support it)
smtpd_tls_loglevel = 1: Log TLS connections for debugging
Session caches improve performance for repeated connections

SASL Authentication:

smtpd_sasl_type = dovecot: Use Dovecot for authentication
smtpd_sasl_path = private/auth: Socket path where Dovecot listens
smtpd_sasl_auth_enable = yes: Enable SASL authentication
noanonymous: Don’t allow anonymous authentication

Recipient Restrictions:

permit_mynetworks: Allow mail from localhost
permit_sasl_authenticated: Allow mail from authenticated users
reject_unauth_destination: Reject mail to external domains (prevents open relay)

Save and exit: Ctrl+X, Y, Enter

Check for configuration errors:

# Postfix will report syntax errors
sudo postfix check

# If there are no errors, nothing is printed
# If there are errors, fix them before proceeding

Restart Postfix to apply changes:

# Restart the service
sudo systemctl restart postfix

# Check status
sudo systemctl status postfix

Expected output:

● postfix.service - Postfix Mail Transport Agent
     Loaded: loaded (/lib/systemd/system/postfix.service; enabled)
     Active: active (exited) since Wed 2026-02-12 18:10:22 UTC

Verify Postfix is listening on port 25:

sudo ss -tlnp | grep :25

Expected output:

LISTEN 0    100    0.0.0.0:25    0.0.0.0:*    users:(("master",pid=12345,fd=13))

This confirms Postfix is listening on all interfaces (0.0.0.0) on port 25.

Check Postfix logs for any errors:

# View recent Postfix logs
sudo journalctl -u postfix -n 50 --no-pager

# Look for lines like:
# postfix/master[xxxxx]: daemon started -- version 3.x.x

If you see errors, address them before proceeding.

Common issues:

Postfix won’t start – configuration error: Run sudo postfix check for details. Common issues:
- Typo in configuration file
- Missing = sign or semicolon
- Wrong certificate path
Port 25 not listening: Check if another service is using port 25: sudo lsof -i :25
Permission denied on certificates: Ensure Postfix can read Let’s Encrypt files: sudo ls -la /etc/letsencrypt/live/mail.[your-domain].com/ # Should be readable by root

Dovecot: IMAP Access

Dovecot provides IMAP access so email clients can retrieve mail. It also handles authentication for Postfix.

Install Dovecot packages:

# Install core Dovecot and IMAP daemon
sudo apt install dovecot-core dovecot-imapd dovecot-lmtpd -y

# Verify installation
dovecot --version
# Should show: 2.3.x or higher

Dovecot configuration is split across multiple files in /etc/dovecot/conf.d/. We’ll edit four key files.

1. Configure Authentication (10-auth.conf):

sudo nano /etc/dovecot/conf.d/10-auth.conf

Find and modify (around line 10):

disable_plaintext_auth = yes

This prevents password transmission without TLS. Uncommitted if it has a # at the start.

Find and modify (around line 100):

auth_mechanisms = plain login

This enables standard authentication methods. Again, remove # if present.

What this does: Requires TLS before accepting passwords (disable_plaintext_auth), and accepts both PLAIN and LOGIN auth methods (compatible with all email clients).

Save and exit: Ctrl+X, Y, Enter

2. Configure Mail Location (10-mail.conf):

sudo nano /etc/dovecot/conf.d/10-mail.conf

Find and set (around line 30):

mail_location = maildir:~/Maildir

Remove the # if present. This tells Dovecot to look for mail in each user’s ~/Maildir directory.

Save and exit: Ctrl+X, Y, Enter

3. Configure SSL/TLS (10-ssl.conf):

sudo nano /etc/dovecot/conf.d/10-ssl.conf

Find and set (around line 6):

ssl = required

Change from ssl = yes to ssl = required to enforce TLS.

Find and modify (around lines 12-14):

ssl_cert = </etc/letsencrypt/live/mail.[your-domain].com/fullchain.pem
ssl_key = </etc/letsencrypt/live/mail.[your-domain].com/privkey.pem

Important: Note the < before the path. This tells Dovecot to read the file contents.

Replace the default paths (pointing to /etc/dovecot/private) with your Let’s Encrypt certificates.

Save and exit: Ctrl+X, Y, Enter

4. Configure Postfix Authentication Socket (10-master.conf):

This is the most critical configuration—it allows Postfix to authenticate users via Dovecot.

sudo nano /etc/dovecot/conf.d/10-master.conf

Find the service auth section (around line 95). It will look like:

service auth {
  # auth_socket_path points to this userdb socket by default. It's typically
  # used by dovecot-lda, doveadm, possibly imap process, etc. Users that have
  # full permissions to this socket are able to get a list of all usernames and
  # get the results of everyone's userdb lookups.
  #
  # The default 0666 mode allows anyone to connect to the socket, but the
  # userdb lookups will succeed only if the userdb returns an "uid" field that
  # matches the caller process's UID. Also if caller's uid or gid matches the
  # socket's uid or gid the lookup succeeds. Anything else causes a failure.
  #
  # To give the caller full permissions to lookup all users, set the mode to
  # something else than 0666 and Dovecot lets the kernel enforce the
  # permissions (e.g. 0777 allows everyone full permissions).
  unix_listener auth-userdb {
    #mode = 0666
    #user =
    #group =
  }
}

Replace the entire service auth section with:

service auth {
  unix_listener auth-userdb {
    #mode = 0666
    #user =
    #group =
  }

  # Postfix smtp-auth
  unix_listener /var/spool/postfix/private/auth {
    mode = 0660
    user = postfix
    group = postfix
  }
}

What this does: Creates a Unix socket at /var/spool/postfix/private/auth that Postfix can use to verify user credentials. The permissions (0660) and ownership (postfix:postfix) allow Postfix to access it.

Save and exit: Ctrl+X, Y, Enter

Add Dovecot user to Postfix group:

This ensures Dovecot has permission to create the socket in Postfix’s directory:

# Add dovecot to postfix group
sudo usermod -aG postfix dovecot

# Verify
groups dovecot
# Should show: dovecot : dovecot postfix

Ensure the private directory exists with correct permissions:

# Check if directory exists
sudo ls -la /var/spool/postfix/private/

# If it doesn't exist, create it
sudo mkdir -p /var/spool/postfix/private/

# Set ownership and permissions
sudo chown postfix:postfix /var/spool/postfix/private/
sudo chmod 750 /var/spool/postfix/private/

Restart Dovecot:

# Restart to apply all configuration changes
sudo systemctl restart dovecot

# Check status
sudo systemctl status dovecot

Expected output:

● dovecot.service - Dovecot IMAP/POP3 email server
     Loaded: loaded (/lib/systemd/system/dovecot.service; enabled)
     Active: active (running) since Wed 2026-02-12 18:15:30 UTC

Verify the authentication socket was created:

sudo ls -la /var/spool/postfix/private/auth

Expected output:

srw-rw---- 1 postfix postfix 0 Feb 12 18:15 /var/spool/postfix/private/auth

The s indicates a socket file, and permissions rw-rw---- mean read/write for user and group (postfix).

Verify Dovecot is listening on port 993:

sudo ss -tlnp | grep :993

Expected output:

LISTEN 0    100    0.0.0.0:993    0.0.0.0:*    users:(("dovecot",pid=31055,fd=37))

Check Dovecot logs:

sudo journalctl -u dovecot -n 50 --no-pager

Look for:

master: Dovecot v2.3.x starting up
No error messages

Common issues:

Auth socket not created: Most common issue. Solutions: # Verify dovecot is in postfix group groups dovecot # Restart both services in order sudo systemctl restart dovecot sudo systemctl restart postfix # Check again sudo ls -la /var/spool/postfix/private/auth
Port 993 not listening: Dovecot may have failed to start. Check logs: sudo journalctl -u dovecot -n 100 --no-pager | grep -i error
SSL certificate errors: Verify paths are correct and files are readable: sudo ls -la /etc/letsencrypt/live/mail.[your-domain].com/ sudo dovecot -n | grep ssl_cert
“doveconf: Fatal: Error in configuration file”: Syntax error in a config file. Check which file: sudo doveconf -n # Will show the error location

Submission Port Configuration

Port 587 is the standard port for mail submission (sending) with authentication. We’ll enable it now so it’s ready for future SMTP relay configuration.

Edit Postfix master configuration:

sudo nano /etc/postfix/master.cf

Find the submission section (around lines 17-30). It will be commented out with # symbols:

#submission inet n       -       y       -       -       smtpd
#  -o syslog_name=postfix/submission
#  -o smtpd_tls_security_level=encrypt
#  -o smtpd_sasl_auth_enable=yes

Uncomment and configure it to look like this (remove ALL # symbols from these lines):

submission inet n       -       y       -       -       smtpd
  -o syslog_name=postfix/submission
  -o smtpd_tls_security_level=encrypt
  -o smtpd_sasl_auth_enable=yes
  -o smtpd_tls_auth_only=yes
  -o smtpd_reject_unlisted_recipient=no
  -o smtpd_client_restrictions=permit_sasl_authenticated,reject
  -o smtpd_recipient_restrictions=
  -o smtpd_relay_restrictions=permit_sasl_authenticated,reject

Important: The lines starting with -o must have leading spaces (not tabs). They are option overrides for this specific service.

What each option does:

syslog_name=postfix/submission: Log entries clearly marked for port 587
smtpd_tls_security_level=encrypt: Require TLS (unlike port 25 which is optional)
smtpd_sasl_auth_enable=yes: Enable authentication
smtpd_tls_auth_only=yes: Only allow authentication over TLS
smtpd_reject_unlisted_recipient=no: Accept mail for any domain (relay it)
smtpd_client_restrictions=permit_sasl_authenticated,reject: Only authenticated users
smtpd_relay_restrictions=permit_sasl_authenticated,reject: Only relay for authenticated users

Why port 587 instead of 465:

Port 587 uses STARTTLS (start with plain text, upgrade to TLS)
Port 465 uses implicit TLS (TLS from the start)
587 is the modern standard, supported by all email clients
You can enable 465 later if needed, but 587 is sufficient

Note about port 465: There’s a submissions section further down in master.cf. Leave it commented out for now. We’re only using port 587.

Save and exit: Ctrl+X, Y, Enter

Restart Postfix to enable the submission port:

sudo systemctl restart postfix

# Check for any errors
sudo systemctl status postfix

Verify port 587 is now listening:

sudo ss -tlnp | grep :587

Expected output:

LISTEN 0    100    0.0.0.0:587    0.0.0.0:*    users:(("master",pid=31782,fd=14))

Verify all three mail ports are listening:

sudo ss -tlnp | grep -E ':(25|587|993)'

Expected output:

LISTEN 0    100    0.0.0.0:25     0.0.0.0:*    users:(("master",pid=31782,fd=13))
LISTEN 0    100    0.0.0.0:587    0.0.0.0:*    users:(("master",pid=31782,fd=14))
LISTEN 0    100    0.0.0.0:993    0.0.0.0:*    users:(("dovecot",pid=31055,fd=37))

All three ports should show “LISTEN”.

Common issue: If port 587 doesn’t appear, check that you uncommented all the submission lines and that there are no syntax errors:

# Check for configuration errors
sudo postfix check

# View recent Postfix logs for errors
sudo journalctl -u postfix -n 30 --no-pager

Create Mail User and Test Reception

Now that Postfix and Dovecot are configured, create a user account and test that email actually works.

Create a system user for email:

# Create user (choose a username - we'll use "collin" as an example)
sudo adduser collin

You’ll be prompted for:

Password (choose a strong one – you’ll use this to log into email)
Full name (optional, press Enter to skip)
Room number, phone, etc. (all optional, press Enter through these)
Confirm: Y

Create the Maildir structure:

Even though Postfix will create Maildir automatically on first delivery, it’s better to create it now with correct permissions:

# Create Maildir for the user
sudo -u collin maildirmake.dovecot /home/collin/Maildir

# Verify it was created
sudo ls -la /home/collin/

# You should see: drwx------ Maildir/

Set proper permissions:

# Ensure ownership is correct
sudo chown -R collin:collin /home/collin/Maildir

# Ensure permissions are restrictive (only user can read)
sudo chmod -R 700 /home/collin/Maildir

# Verify
sudo ls -la /home/collin/Maildir/

Expected Maildir structure:

drwx------ 5 collin collin 4096 Feb 12 18:49 .
drwx------ 3 collin collin 4096 Feb 12 18:49 ..
drwx------ 2 collin collin 4096 Feb 12 18:49 cur
drwx------ 2 collin collin 4096 Feb 12 18:49 new
drwx------ 2 collin collin 4096 Feb 12 18:49 tmp

The three subdirectories:

new/ – Unread messages
cur/ – Read messages
tmp/ – Temporary files during delivery

Send a test email from external provider:

Using Gmail, ProtonMail, or any other email account, send an email to:

collin@[your-domain].com

Subject: Test Email
Body: Testing my new mail server!

Wait 10-30 seconds for delivery, then check the logs:

# Watch for the delivery in real-time
sudo journalctl -u postfix -f

# Press Ctrl+C to stop watching

Or check recent entries:

# View last 50 Postfix log entries
sudo journalctl -u postfix -n 50 --no-pager

# Search specifically for delivered messages
sudo journalctl -u postfix --no-pager | grep -i delivered

Look for a line like:

postfix/local[32242]: 8AE4841E68: to=<collin@[your-domain].com>, relay=local, delay=0.18, delays=0.16/0.01/0/0, dsn=2.0.0, status=sent (delivered to mailbox)

The key part is status=sent (delivered to mailbox).

Check if the email file exists:

# List new mail
sudo ls -la /home/collin/Maildir/new/

# You should see a file with a name like:
# 1707683045.V801I12345M654321.mail

Read the email (optional):

# View the raw email
sudo cat /home/collin/Maildir/new/*

You’ll see the full email including all headers, which is useful for debugging.

Test IMAP access with an email client:

Now configure an email client to make sure IMAP works. Use any of these:

Thunderbird (desktop)
iOS Mail (iPhone/iPad)
Android Gmail or K-9 Mail
macOS Mail

IMAP Settings:

Server: mail.[your-domain].com
Port: 993
Connection security: SSL/TLS
Authentication: Normal password
Username: collin
Password: [the password you set for collin user]

SMTP Settings (for future sending):

Server: mail.[your-domain].com
Port: 587
Connection security: STARTTLS
Authentication: Normal password
Username: collin
Password: [the password you set for collin user]

In Thunderbird, for example:

Open Thunderbird
File → New → Existing Mail Account
Enter:
- Your name: Your Name
- Email address: collin@[your-domain].com
- Password: [collin’s password]
Click “Configure manually”
Enter the IMAP and SMTP settings above
Click “Done”

You should:

Connect successfully
See your “Test Email” in the inbox
Be able to read it

Common issues:

Email doesn’t arrive – check logs: # Check for errors or bounces sudo journalctl -u postfix -n 100 --no-pager | grep -i error # Check mail queue sudo mailq # Should be empty if mail was delivered
Email delivered to /var/mail/collin instead of Maildir: # Check traditional mailbox location sudo ls -la /var/mail/collin # If mail is there, Postfix isn't using Maildir # Verify main.cf has: home_mailbox = Maildir/ sudo grep "home_mailbox" /etc/postfix/main.cf # Restart Postfix if you changed anything sudo systemctl restart postfix
IMAP connection refused: # Verify Dovecot is running sudo systemctl status dovecot # Verify port 993 is listening sudo ss -tlnp | grep :993 # Check Dovecot logs for errors sudo journalctl -u dovecot -n 50 --no-pager
Authentication failed in email client: # Verify user exists id collin # Try testing authentication manually telnet localhost 143 # Type: a1 LOGIN collin password # Should return: a1 OK Logged in # Type: a2 LOGOUT
TLS/SSL errors: # Verify certificates are readable sudo ls -la /etc/letsencrypt/live/mail.[your-domain].com/ # Test TLS connection openssl s_client -connect mail.[your-domain].com:993 -quiet # Should show certificate chain and connect

If your email client connects and shows the test email, mail reception is fully working. You can now receive email on your domain and access it via IMAP from any device.

The Outbound Challenge

Email Reputation Reality

Your mail server can now receive email perfectly. Sending is where things get complicated.

The problem: Email providers (Gmail, Outlook, etc.) evaluate sender reputation based on:

IP reputation – Is this IP known to send spam?
Sending volume – Do they send enough mail to establish patterns?

Why VPS IPs struggle:

Cloud provider IP ranges are constantly cycled by spammers
If another DigitalOcean customer in your subnet sends spam, your IP can be blacklisted by association
Personal mail servers send 5-10 emails/day, which isn’t enough volume for ML models to build trust

The solution: Use a commercial SMTP relay service with established IP pools and reputation. They handle deliverability; you handle learning mail infrastructure.

This isn’t defeat—it’s pragmatic architecture. You’re still running the full mail stack, just routing outbound through a reliable path.

AWS SES: Setup and Reality Check

Amazon Simple Email Service (SES) was our first choice for outbound relay due to its excellent deliverability and cost-effectiveness ($0.10 per 1,000 emails). Here’s what happened during setup.

Create or log into your AWS account:

Navigate to: https://console.aws.amazon.com/

Access the SES Console:

In the top search bar, type “SES”
Click Simple Email Service
Important: Check your region in the top-right corner
- Choose: us-east-2 (Ohio) or us-east-1 (Virginia)
- SES isn’t available in all regions
- Remember which region you choose—use it consistently

Verify your domain:

In the SES dashboard, left sidebar → Verified identities
Click Create identity (orange button)
Select: Domain
Domain name: [your-domain].com (without mail. prefix)
Check these boxes:
- ✅ Use a default DKIM signing key (RSA_2048_BIT)
- ❌ Publish DNS records to Route 53 – UNCHECK (we’re using Cloudflare)
Click Create identity

You’ll see a verification screen with DNS records:

AWS generates three DKIM CNAME records. Copy each one to a text file:

[random-string-1]._domainkey.[your-domain].com → [value-1].dkim.amazonses.com
[random-string-2]._domainkey.[your-domain].com → [value-2].dkim.amazonses.com
[random-string-3]._domainkey.[your-domain].com → [value-3].dkim.amazonses.com

Plus a domain verification TXT record:

_amazonses.[your-domain].com → [verification-code]

Add DKIM records to Cloudflare:

Go to Cloudflare DNS → Add record (do this 3 times):

Type: CNAME
Name: [random-string-1]._domainkey
Target: [value-1].dkim.amazonses.com
Proxy: DNS only
TTL: Auto

Repeat for all three DKIM records. After 2-5 minutes, AWS will verify them and show “Successful” next to DKIM configuration.

Generate SMTP credentials:

These credentials allow Postfix to authenticate with SES as an SMTP relay.

SES Console → Left sidebar → SMTP settings
Click Create SMTP credentials
IAM User Name: Keep default (ses-smtp-user-[date]) or customize
Click Create user
Critical: Download or copy the credentials immediately:
- SMTP username: (starts with AKIA…)
- SMTP password: (long random string)
- You cannot retrieve the password later!

Save these in a secure location (password manager). We’ll use them in Part 3 for SMTP2GO, or later when SES is approved.

Request production access:

By default, SES operates in “sandbox mode,” which only allows sending to verified email addresses. For real-world use (like job applications), you need production access.

SES Console → Left sidebar → Account dashboard
Look for Production access section
Click Request production access button

Fill out the form:

Mail type: Transactional
Website URL: https://[your-domain].com
Use case description: Personal mail server for professional blog ([your-domain].com) and job application correspondence.Low volume (50-100 emails per month). Self-hosted Postfix MTA using SES as SMTP relay for reliable delivery.All mail is individual professional correspondence—no bulk sending or marketing.
Describe how you will comply with AWS Service Terms: Monitor SES console daily for bounces and complaints. Remove invalid addresses immediately.Maintain low complaint rate. All recipients are legitimate contacts (job recruiters, blog readers who contacted me).
Acknowledge compliance: Check the box
Click Submit request

The response (24-48 hours later):

This is what AWS actually sent back:

Hello,

Thank you for submitting your request to increase your sending limits. We would like to gather more information about your use case.

[…]

Due to some limiting factors on your account currently, you are not eligible to send SES messages in US East (Ohio) region. You will need to show a pattern of use of other AWS services and a consistent paid billing history to gain access to this function.

We enforce these limitations on all new accounts. Your continued usage of other AWS services will give us greater flexibility to increase your spending limits in the future.

Please open a new case after you have a successful billing cycle and additional use of other AWS services and we will gladly review your account.

What this means:

AWS is being conservative with new accounts to prevent spammers. They want to see:

“Pattern of use of other AWS services” – Not just SES, but S3, Lambda, CloudWatch, etc.
“Consistent paid billing history” – At least 1-2 billing cycles ($2-10/month minimum)
Time – Proving you’re not a fly-by-night spam operation

This isn’t a permanent “no”—it’s “not yet, prove you’re legitimate first.”

This is frustrating but common. Many new AWS accounts experience this, especially for SES. The solution is to build up AWS usage over 60-90 days, then reapply with evidence of legitimate usage.

Why we’re not giving up on SES:

Best long-term economics ($0.10/1000 emails vs $19.95/month for SendGrid at scale)
Excellent deliverability when approved
AWS experience is valuable for cybersecurity roles
Learning AWS infrastructure is part of the project

The strategy:

Use SMTP2GO immediately (1,000 emails/month free tier) for projects and correspondence
Build AWS usage history with S3 backups (next section)
Optionally use Lambda, CloudWatch for additional AWS activity
After 60-90 days, reapply to SES with proof:
- “I’ve been using S3 for automated backups for 3 months”
- “Consistent billing history attached”
- “Professional mail infrastructure in production”
Much higher approval odds the second time

This approach is both pragmatic (email works now via SMTP2GO) and strategic (positioning for SES approval later).

Building AWS Usage History: S3 Backups

The strategy to get SES approved: generate consistent AWS usage and billing history while also creating something useful. Automated mail backups to S3 accomplish both.

Benefits:

Generates AWS billing (~$0.50-1/month)
Shows regular service usage
Actually protects your mail
Positions you for SES approval in 60-90 days

Install AWS CLI v2:

The awscli package isn’t in Ubuntu 24.04 repositories. Install the official AWS CLI v2:

# Download the installer
curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"

# Install unzip if not present
sudo apt install unzip -y

# Unzip the installer
unzip awscliv2.zip

# Run the installer
sudo ./aws/install

# Verify installation
aws --version
# Should show: aws-cli/2.x.x Python/3.x.x Linux/...

# Clean up
rm -rf aws awscliv2.zip

Create IAM user with S3 access:

Don’t use your root AWS account credentials. Create a dedicated IAM user for the mail server:

AWS Console → Search for IAM → Click IAM
Left sidebar → Users
Click Create user (orange button)
User name: mail-server-admin
Click Next

Set permissions:

Select Attach policies directly
Search for and select these policies:
- ✅ AmazonS3FullAccess (for backups)
- ✅ CloudWatchLogsFullAccess (optional, for future log monitoring)
- ✅ AWSLambda_FullAccess (optional, for future automation)
Click Next
Review and click Create user

Create access keys for CLI access:

Click on the user you just created: mail-server-admin
Click Security credentials tab
Scroll down to Access keys section
Click Create access key
Select use case: Command Line Interface (CLI)
Check the confirmation checkbox: “I understand the above recommendation…”
Click Next
Description (optional): “Mail server backups and automation”
Click Create access key

Save your credentials:

You’ll see:

Access key ID: AKIA… (20 characters)
Secret access key: Long random string (40 characters)

Critical: Click Download .csv file and save it securely. You cannot view the secret again!

Copy both values to use in the next step.

Configure AWS CLI on your mail server:

# Run configuration wizard
aws configure

Enter when prompted:

AWS Access Key ID [None]: AKIA[your-key-here]
AWS Secret Access Key [None]: [your-secret-key-here]
Default region name [None]: us-east-2
Default output format [None]: json

Verify credentials work:

# Test authentication
aws sts get-caller-identity

Expected output:

{
    "UserId": "AIDA...",
    "Account": "123456789012",
    "Arn": "arn:aws:iam::123456789012:user/mail-server-admin"
}

If you see your account number and the mail-server-admin user, configuration is correct.

Create S3 bucket for backups:

Bucket names must be globally unique across all AWS accounts. Add a timestamp to ensure uniqueness:

# Create bucket (replace [your-domain] with your actual domain)
aws s3 mb s3://[your-domain]-mail-backups-$(date +%s)

# Example output:
# make_bucket: secblues-mail-backups-1707928699

Note the full bucket name (including the timestamp). You’ll need it for the backup script.

Verify bucket was created:

# List all your buckets
aws s3 ls

# Should show:
# 2026-02-12 20:38:22 [your-domain]-mail-backups-1707928699

Create backup script:

# Create the script file
sudo nano /usr/local/bin/backup-mail.sh

Paste this script (replace placeholders with your actual values):

#!/bin/bash

# Mail backup script for S3
# Backs up Maildir and mail configuration daily

BACKUP_DATE=$(date +%Y-%m-%d-%H%M%S)
BUCKET_NAME="[your-full-bucket-name-including-timestamp]"
MAIL_USER="[your-mail-username]"
BACKUP_DIR="/tmp/mail-backup-${BACKUP_DATE}"

# Create temporary backup directory
mkdir -p ${BACKUP_DIR}

# Backup Maildir (user's mail)
tar -czf ${BACKUP_DIR}/maildir-${BACKUP_DATE}.tar.gz \
    -C /home/${MAIL_USER} \
    Maildir/

# Backup mail server configuration
tar -czf ${BACKUP_DIR}/mail-config-${BACKUP_DATE}.tar.gz \
    /etc/postfix/main.cf \
    /etc/postfix/master.cf \
    /etc/dovecot/

# Upload Maildir backup to S3
aws s3 cp ${BACKUP_DIR}/maildir-${BACKUP_DATE}.tar.gz \
    s3://${BUCKET_NAME}/maildir/

# Upload config backup to S3
aws s3 cp ${BACKUP_DIR}/mail-config-${BACKUP_DATE}.tar.gz \
    s3://${BUCKET_NAME}/config/

# Cleanup temporary files
rm -rf ${BACKUP_DIR}

echo "Backup completed: ${BACKUP_DATE}"

What this script does:

Creates timestamped backups of Maildir and configurations
Compresses them with gzip
Uploads to separate S3 folders (maildir/ and config/)
Cleans up temporary files
Logs completion

Save and exit: Ctrl+X, Y, Enter

Make the script executable:

# Set execute permission
sudo chmod +x /usr/local/bin/backup-mail.sh

# Verify permissions
ls -la /usr/local/bin/backup-mail.sh
# Should show: -rwxr-xr-x (executable)

Test the backup script:

# Run manually
sudo /usr/local/bin/backup-mail.sh

Expected output:

Backup completed: 2026-02-12-204716

Verify files were uploaded to S3:

# List all objects in bucket
aws s3 ls s3://[your-bucket-name]/ --recursive

Expected output:

2026-02-12 20:47:21   3529 maildir/maildir-2026-02-12-204716.tar.gz
2026-02-12 20:47:21  28314 config/mail-config-2026-02-12-204716.tar.gz

If you see both files, backups are working!

Schedule automatic daily backups with cron:

# Edit root's crontab
sudo crontab -e

If prompted to select an editor:

Choose 1 for nano (easiest)

Add this line at the end:

# Daily mail backup at 2:00 AM
0 2 * * * /usr/local/bin/backup-mail.sh >> /var/log/mail-backup.log 2>&1

What this does:

Runs backup script daily at 2:00 AM
Logs output to /var/log/mail-backup.log
2>&1 captures both stdout and stderr

Save and exit: Ctrl+X, Y, Enter

Verify cron job was added:

# List crontab
sudo crontab -l

# Should show your backup line

Check cron service is running:

sudo systemctl status cron
# Should show: active (running)

Configure S3 lifecycle policy (auto-delete old backups):

Keep backups for 30 days, then automatically delete them to control costs:

# Create lifecycle policy file
cat > /tmp/lifecycle.json << 'EOF'
{
  "Rules": [
    {
      "Expiration": {
        "Days": 30
      },
      "ID": "DeleteOldBackups",
      "Status": "Enabled",
      "Prefix": ""
    }
  ]
}
EOF

# Apply policy to bucket
aws s3api put-bucket-lifecycle-configuration \
  --bucket [your-bucket-name] \
  --lifecycle-configuration file:///tmp/lifecycle.json

# Verify policy was applied
aws s3api get-bucket-lifecycle-configuration \
  --bucket [your-bucket-name]

Expected output:

{
    "Rules": [
        {
            "Expiration": {
                "Days": 30
            },
            "ID": "DeleteOldBackups",
            "Status": "Enabled",
            "Prefix": ""
        }
    ]
}

This keeps your S3 costs predictable—after 30 days, old backups are automatically deleted.

Cost estimation:

S3 storage: $0.023/GB/month
Estimated usage: 20GB (mail + configs, 30 days retention)
Lifecycle policy: Automatically deletes after 30 days
Monthly cost: ~$0.50-1.00

Small cost for AWS usage history plus actual backup protection.

What you’ve accomplished:

✅ AWS CLI configured and authenticated
✅ S3 bucket created
✅ Automated daily backups working
✅ 30-day retention policy
✅ AWS billing started (usage history building)
✅ Actual useful backup system

Timeline for SES:

Month 1-2: S3 backups generate consistent usage
Month 2-3: 2+ billing cycles complete
Month 3: Reapply to SES with evidence: “3 months of S3 usage, consistent billing history”
Expected: Much higher approval rate

Testing the backup:

The cron job runs daily at 2 AM. To test it now:

# Run backup manually
sudo /usr/local/bin/backup-mail.sh

# Check the log (will be created after first cron run)
tail /var/log/mail-backup.log

# Verify S3 has new files
aws s3 ls s3://[your-bucket-name]/ --recursive --human-readable

You should see increasing file counts daily.

Restoring from backup (if needed):

# List available backups
aws s3 ls s3://[your-bucket-name]/maildir/

# Download specific backup
aws s3 cp s3://[your-bucket-name]/maildir/maildir-2026-02-12-204716.tar.gz /tmp/

# Extract
cd /home/[username]
tar -xzf /tmp/maildir-2026-02-12-204716.tar.gz

# Verify mail restored
ls -la /home/[username]/Maildir/new/

Verification and Testing

Run through this comprehensive checklist to confirm everything is configured correctly.

System and Network Checks

Verify all ports are listening:

# Check all three mail ports at once
sudo ss -tlnp | grep -E ':(25|587|993)'

Expected output:

LISTEN 0    100    0.0.0.0:25     0.0.0.0:*    users:(("master",pid=31782,fd=13))
LISTEN 0    100    0.0.0.0:587    0.0.0.0:*    users:(("master",pid=31782,fd=14))
LISTEN 0    100    0.0.0.0:993    0.0.0.0:*    users:(("dovecot",pid=31055,fd=37))

All three should show “LISTEN”.

Verify firewall rules:

sudo ufw status verbose | grep -E '(25|587|993|80|443)'

Expected output:

25/tcp                     ALLOW IN    Anywhere
587/tcp                    ALLOW IN    Anywhere
993/tcp                    ALLOW IN    Anywhere
80/tcp                     ALLOW IN    Anywhere
443/tcp                    ALLOW IN    Anywhere

DNS Verification

Re-verify all DNS records:

# A record
dig mail.[your-domain].com +short
# Should return: [your-droplet-ip]

# MX record
dig MX [your-domain].com +short
# Should return: 10 mail.[your-domain].com.

# SPF record
dig TXT [your-domain].com +short | grep spf
# Should include: "v=spf1 ip4:[your-ip] include:amazonses.com -all"

# DMARC record
dig TXT _dmarc.[your-domain].com +short
# Should return: "v=DMARC1; p=none; rua=mailto:dmarc@..."

# PTR record (reverse DNS)
dig -x [your-droplet-ip] +short
# Should return: mail.[your-domain].com.

If any fail, revisit the DNS configuration section.

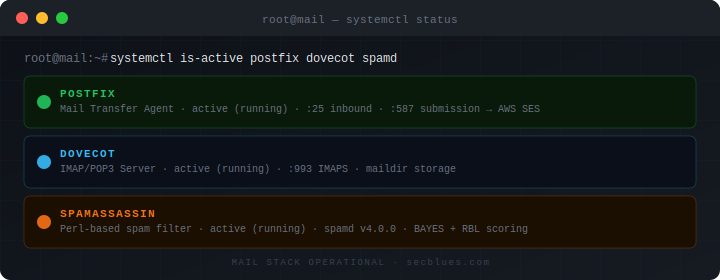

Service Status Checks

Verify all services are running:

# Postfix status
sudo systemctl status postfix --no-pager -l

# Dovecot status
sudo systemctl status dovecot --no-pager -l

# Both should show: Active: active (running)

Check for errors in logs:

# Postfix errors
sudo journalctl -u postfix -n 100 --no-pager | grep -i error

# Dovecot errors
sudo journalctl -u dovecot -n 100 --no-pager | grep -i error

# If both return nothing, that's good - no errors

Postfix Configuration Checks

Verify Postfix is using Maildir:

sudo postconf | grep home_mailbox
# Should show: home_mailbox = Maildir/

Verify TLS certificates are configured:

sudo postconf | grep smtpd_tls_cert_file
sudo postconf | grep smtpd_tls_key_file

# Both should point to /etc/letsencrypt/live/mail.[your-domain].com/

Verify SASL is enabled:

sudo postconf | grep smtpd_sasl_auth_enable
# Should show: smtpd_sasl_auth_enable = yes

Dovecot Configuration Checks

Verify mail location:

sudo doveconf -n | grep mail_location
# Should show: mail_location = maildir:~/Maildir

Verify SSL is required:

sudo doveconf -n | grep "^ssl "
# Should show: ssl = required

Verify auth socket exists:

sudo ls -la /var/spool/postfix/private/auth
# Should show: srw-rw---- 1 postfix postfix

Email Delivery Test

Send test email from external provider:

From Gmail, ProtonMail, or any other email service, send to: [your-username]@[your-domain].com

Monitor delivery in real-time:

# Watch logs
sudo journalctl -u postfix -f

# Press Ctrl+C when you see the delivery

Verify delivery:

# Check for "delivered to mailbox"
sudo journalctl -u postfix --no-pager | grep "status=sent"

# Example output:
# status=sent (delivered to mailbox)

Verify email file exists:

# List new mail
sudo ls -la /home/[your-username]/Maildir/new/

# Should see a file with timestamp in name

IMAP Connection Test

Test with command-line:

# Test IMAP over SSL
openssl s_client -connect mail.[your-domain].com:993 -quiet

# After connection, type:
a1 LOGIN [username] [password]
# Should return: a1 OK Logged in

# List mailboxes
a2 LIST "" "*"
# Should show: * LIST (\HasNoChildren) "." "INBOX"

# Logout
a3 LOGOUT

Test with email client:

Configure any IMAP client with these settings and verify:

Connection succeeds
Test email appears in inbox
Can read the email

Connection details:

IMAP:
  Server: mail.[your-domain].com
  Port: 993
  Security: SSL/TLS
  Username: [your-username]
  Password: [user's password]

SMTP (for future):
  Server: mail.[your-domain].com
  Port: 587
  Security: STARTTLS
  Username: [your-username]
  Password: [user's password]

AWS S3 Backup Verification

Verify backup script runs:

# Run manual backup
sudo /usr/local/bin/backup-mail.sh

# Check output
# Should show: Backup completed: [timestamp]

Verify files in S3:

# List all backups
aws s3 ls s3://[your-bucket-name]/ --recursive --human-readable

# Should show files in maildir/ and config/ folders

Verify cron job:

# Check crontab
sudo crontab -l | grep backup-mail

# Should show: 0 2 * * * /usr/local/bin/backup-mail.sh

Verify lifecycle policy:

# Check policy
aws s3api get-bucket-lifecycle-configuration \
  --bucket [your-bucket-name]

# Should show 30-day expiration rule

TLS Certificate Verification

Check certificate expiration:

# Check cert details
sudo certbot certificates

# Should show:
# Certificate Name: mail.[your-domain].com
# Expiry Date: [90 days from creation]
# Certificate Path: /etc/letsencrypt/live/mail.[your-domain].com/fullchain.pem

Verify auto-renewal:

# Check renewal timer
sudo systemctl status certbot.timer

# Should show: Active: active (waiting)

Test renewal process:

# Dry run (doesn't actually renew)
sudo certbot renew --dry-run

# Should end with: Congratulations, all simulations succeeded

Security Verification

Check file permissions on sensitive files:

# Maildir should be 700 (user-only access)
sudo ls -ld /home/[username]/Maildir
# Should show: drwx------

# Certificate private key should be 600
sudo ls -la /etc/letsencrypt/live/mail.[your-domain].com/privkey.pem
# Should show: -rw-r--r-- (lrwxrwxrwx if symlink)

# Postfix config should be 644
sudo ls -la /etc/postfix/main.cf
# Should show: -rw-r--r--

Verify no open relay:

# Test if server allows relaying without auth
telnet mail.[your-domain].com 25

# After connection, type:
HELO test.com
MAIL FROM: [email protected]
RCPT TO: [email protected]

# Should get: 554 5.7.1 Relay access denied
# This is GOOD - server refuses to relay

Final Checklist

Run through this checklist and verify each item:

[ ] All ports listening (25, 587, 993)
[ ] All DNS records verified (A, MX, SPF, DMARC, PTR)
[ ] Postfix running without errors
[ ] Dovecot running without errors
[ ] TLS certificates valid and auto-renewing
[ ] External email received successfully
[ ] Email visible in Maildir
[ ] IMAP client connection works
[ ] Can read received email in client
[ ] Auth socket exists and accessible
[ ] S3 backups working
[ ] Cron job scheduled
[ ] AWS usage generating billing
[ ] No open relay (relay access denied without auth)

If all items are checked, your mail server is fully operational for receiving email.

What’s working:

Receiving email from any sender
IMAP access from any email client
TLS encryption throughout
Automated backups
AWS usage history building

What’s pending:

Outbound relay configuration (Part 3: SMTP2GO)
Spam filtering (Part 3: SpamAssassin)
Additional security hardening (Part 3)
AWS SES approval (60-90 days)

Conclusion

You’ve built a production-ready mail server from scratch. Let’s review what you’ve accomplished and what comes next.

What You’ve Built

Infrastructure:

DigitalOcean droplet running Ubuntu 24.04 LTS
Hardened firewall (UFW) with only necessary ports open
TLS certificates from Let’s Encrypt with automatic renewal
Complete DNS configuration (A, MX, SPF, DMARC, PTR)

Mail Services:

Postfix: Receiving mail on port 25, submission on port 587
Dovecot: IMAP access on port 993
Maildir format: Each email as a separate file
TLS encryption: All connections encrypted
Authentication: Dovecot SASL integration with Postfix

Backup and AWS Integration:

AWS CLI configured and authenticated
S3 bucket for automated backups
Daily backup script running via cron
30-day retention policy
Consistent AWS usage generating billing history

Current Capabilities

Fully Functional:

Receiving email: Anyone can send mail to [username]@[your-domain].com
IMAP access: Connect from any email client (Thunderbird, iOS Mail, Android, etc.)
Multiple devices: Access same mailbox from phone, laptop, tablet
Encrypted connections: TLS for SMTP and IMAP
Automated backups: Daily backups to S3
Professional setup: Proper SPF, DMARC, PTR records

Pending Configuration:

Sending email: Requires SMTP relay (Part 3)
Spam filtering: SpamAssassin configuration (Part 3)
Security hardening: fail2ban, additional restrictions (Part 3)
Monitoring: Log analysis, alerting (Part 3)

Monthly Costs

Current expenses:

DigitalOcean droplet (mail server): $6.00/month
DigitalOcean droplet (WordPress, existing): $6.00/month
AWS S3 backups: ~$0.50/month
Total: ~$12.50/month

Cost breakdown by function:

Receiving email: $6/month (droplet)
Backup protection: $0.50/month (S3)
AWS usage history: $0.50/month (S3, building toward SES)
WordPress hosting: $6/month (existing)

Comparison to alternatives:

Google Workspace: $6/user/month = $72/year (email only, no custom setup)
Fastmail: $5/month = $60/year (email only)
Your setup: $12.50/month = $150/year (email + blog + learning experience)

The AWS SES Situation

Current status: Production access denied due to new account

What we learned: AWS requires established usage history before approving SES for new accounts. This is common anti-spam policy, not a rejection of your use case.

The path forward:

Now – Month 2: S3 backups generate consistent AWS usage and billing
Month 2-3: Additional AWS services (optional: Lambda automation, CloudWatch logging)
Month 3: Reapply to SES with evidence:
- “90 days of consistent S3 usage”
- “3 billing cycles with charges”
- “Professional mail infrastructure in production”
Expected outcome: Much higher approval rate

Why we’re not giving up on SES:

Best long-term economics ($0.10/1,000 emails)
Excellent deliverability
AWS experience valuable for cybersecurity careers
Natural fit with existing AWS infrastructure (S3 backups)

Timeline: 60-90 days until SES reapplication

What’s Next: Part 3 and Beyond

The next article will cover:

1. SMTP2GO SMTP Relay (Immediate Solution)

Sign up for free tier (1,000 emails/month)
Configure Postfix to relay via SMTP2GO
Test outbound email delivery
Verify deliverability to Gmail, Outlook, etc.

Why SMTP2GO:

Works immediately (no waiting period)
Free tier sufficient for personal use
Proven deliverability
Temporary until SES approval

2. SpamAssassin Configuration

Install and configure spam filtering
Bayesian learning
Custom rules
Integration with Dovecot

3. Security Hardening

fail2ban for brute-force protection
Rate limiting
Additional Postfix restrictions
Log monitoring
Intrusion detection

4. Monitoring and Maintenance

Log rotation
Performance monitoring
Disk usage alerts
Backup verification
Certificate renewal checks

Skills Acquired

Through this deployment, you’ve gained hands-on experience with:

Linux System Administration:

User and permissions management
Firewall configuration (UFW)
Service management (systemd)
Cron job automation
Log analysis

Email Infrastructure:

SMTP protocol and Postfix configuration
IMAP protocol and Dovecot setup
TLS certificate management
DNS records (MX, A, SPF, DMARC, PTR)
Maildir format and mail delivery

Cloud Infrastructure:

AWS IAM user and policy management
AWS CLI configuration
S3 bucket creation and lifecycle policies
Multi-cloud architecture (DO + AWS + Cloudflare)

Troubleshooting:

Service debugging via journalctl
DNS propagation issues
Permission and socket configuration
Log analysis and error resolution

Documentation for Future Reference

Key file locations:

Configuration Files:
/etc/postfix/main.cf          - Postfix main configuration
/etc/postfix/master.cf        - Postfix service configuration
/etc/dovecot/conf.d/          - Dovecot configuration directory
/etc/letsencrypt/live/        - TLS certificates
/usr/local/bin/backup-mail.sh - Backup script

Mail Data:
/home/[username]/Maildir/     - User mailbox
/var/spool/postfix/           - Postfix queue and sockets

Logs:
journalctl -u postfix         - Postfix logs
journalctl -u dovecot         - Dovecot logs
/var/log/mail-backup.log      - Backup logs (after first cron run)

AWS:
~/.aws/credentials            - AWS CLI credentials
~/.aws/config                 - AWS CLI configuration

Important commands:

# Service management
sudo systemctl restart postfix
sudo systemctl restart dovecot
sudo systemctl status postfix dovecot

# View logs
sudo journalctl -u postfix -f
sudo journalctl -u dovecot -n 100

# Check mail queue
sudo mailq

# Test configuration
sudo postfix check
sudo doveconf -n

# Manual backup
sudo /usr/local/bin/backup-mail.sh

# List S3 backups
aws s3 ls s3://[bucket-name]/ --recursive

Final Thoughts

Building a mail server is one of the more complex self-hosting projects, which is why many people avoid it. But you’ve done it the right way:

Security-first: TLS, proper authentication, restricted permissions
Properly configured: Following best practices for DNS, file permissions, service configuration
Documented: Understanding why each component exists and how they interact
Backed up: Automated protection for your data
Pragmatic: Using commercial relay for deliverability while building toward full self-hosting

You now have a fully functional mail server that receives email reliably, integrates with any email client, and provides the foundation for complete email independence.

Part 3 will complete the picture by adding outbound sending capabilities and additional security layers, giving you a production-ready mail server suitable for professional correspondence.

Published:
Last updated:
Time to complete: 2-3 hours
Part of series: Building a Secure Email Server
Next: Part 3 – Outbound Relay, Spam Filtering, and Security Hardening

The Mailroom: Part Two – Deployment

Building a Secure Email Server: Part 2 – Deployment

Introduction

Preparation

Server Provisioning

DNS Configuration

TLS Certificates

Mailbox Essentials

Postfix: Receiving Mail

Dovecot: IMAP Access

Submission Port Configuration

Create Mail User and Test Reception

The Outbound Challenge

Email Reputation Reality

AWS SES: Setup and Reality Check

Building AWS Usage History: S3 Backups

Verification and Testing

System and Network Checks

DNS Verification

Service Status Checks

Postfix Configuration Checks

Dovecot Configuration Checks

Email Delivery Test

IMAP Connection Test

AWS S3 Backup Verification

TLS Certificate Verification

Security Verification

Final Checklist

Conclusion

What You’ve Built

Current Capabilities

Monthly Costs

The AWS SES Situation

What’s Next: Part 3 and Beyond

Skills Acquired

Documentation for Future Reference

Final Thoughts

Leave a Reply Cancel reply
